Prep Guard Column Cartridge, RP C4 Wide Pore, 5um, 300A. 30mm ID x 10mm Length. Cogent Brand. 1 EA. Special Order Item.
Additional Information:
Cogent RP C4™ Wide Pore Prep Guard Column Cartridges are designed to protect valuable preparative HPLC columns from particulates, sample contaminants, and strongly retained compounds that can reduce column performance and shorten column life. Packed with the same RP C4™ Wide Pore stationary phase used in Cogent preparative columns, these guard cartridges help maintain method consistency while extending preparative column service life. The stationary phase consists of a four-carbon butyl ligand bonded to ultra-high purity silica and is fully double end capped for reproducible reversed-phase performance.

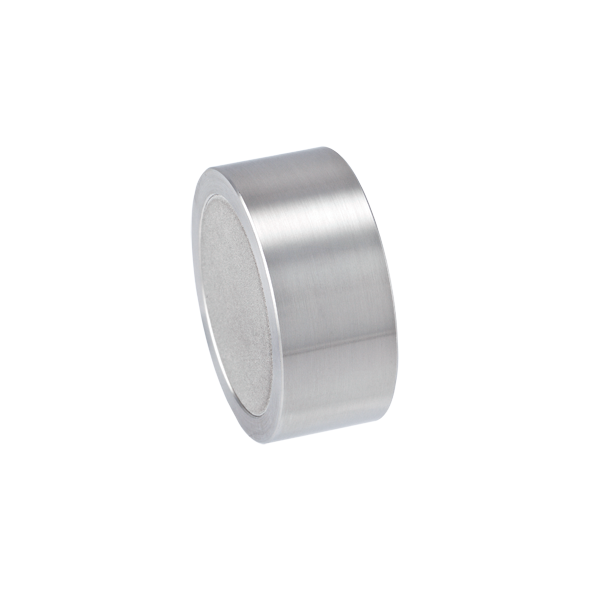

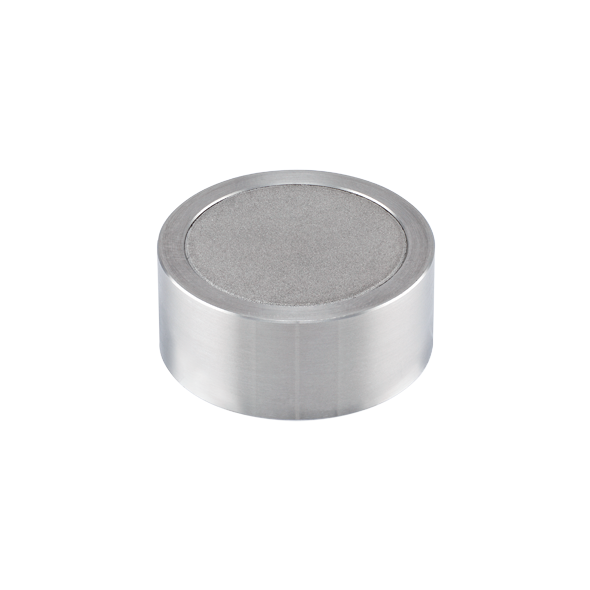

68504-P30-PG1-3 is a preparative guard column cartridge packed with 5 µm RP C4™ Wide Pore particles featuring a 300 Å pore size in a 30 mm ID x 10 mm format. Designed specifically to protect Cogent RP C4™ Wide Pore preparative columns, the cartridge captures particulates and contaminants before they reach the preparative column bed. Constructed from a stainless steel tube with stainless steel frits, it provides durability and reliable performance in demanding preparative HPLC applications.
Routine replacement of guard column cartridges helps maintain preparative column efficiency, preserve chromatographic performance, and reduce operating costs associated with column replacement. This cartridge is ideal for preparative purification of proteins, peptides, enzymes, and other large biomolecules used in pharmaceutical, biopharmaceutical, and research laboratories.
Key Benefits
RP C4™ Wide Pore stationary phase
USP L26 equivalent chemistry
Butyl (C4) bonded phase
Fully double end capped
Ultra-high purity silica support
300 Å wide pore design
Protects preparative columns from contamination
Extends preparative column lifetime
Maintains chromatographic performance
Durable stainless steel construction
Typical Applications
Preparative HPLC
Protein purification
Peptide purification
Enzyme purification
Biomolecule isolation
Fraction collection
Biopharmaceutical purification
Process development
Method development
Preparative column protection
Specifications
Product Type: Preparative Guard Column Cartridge
Stationary Phase: RP C4™ Wide Pore
USP Classification: L26
Chromatography Mode: Reversed Phase
Bonded Phase: Butyl (C4)
Endcapping: Fully Double End Capped
Particle Size: 5 µm
Pore Size: 300 Å
Cartridge Dimensions: 30 mm ID x 10 mm
Construction: Stainless Steel Tube with Stainless Steel Frits
Brand: Cogent
Special Order Item Information
Important Notes
Designed to protect RP C4™ Wide Pore preparative columns from particulates and contaminants
300 Å wide pores are optimized for proteins, peptides, enzymes, and other large biomolecules
Helps extend preparative column service life
Maintains preparative column efficiency and performance
Suitable for preparative reversed-phase HPLC applications
Constructed with durable stainless steel hardware
A specialized preparative HPLC system is required for use with 30 mm ID columns
A Cogent 30 mm ID Prep Guard Column Holder (83000-P30-GH) is required for use with this guard column cartridge
This is a Special Order Item
